Collection View
xib-based

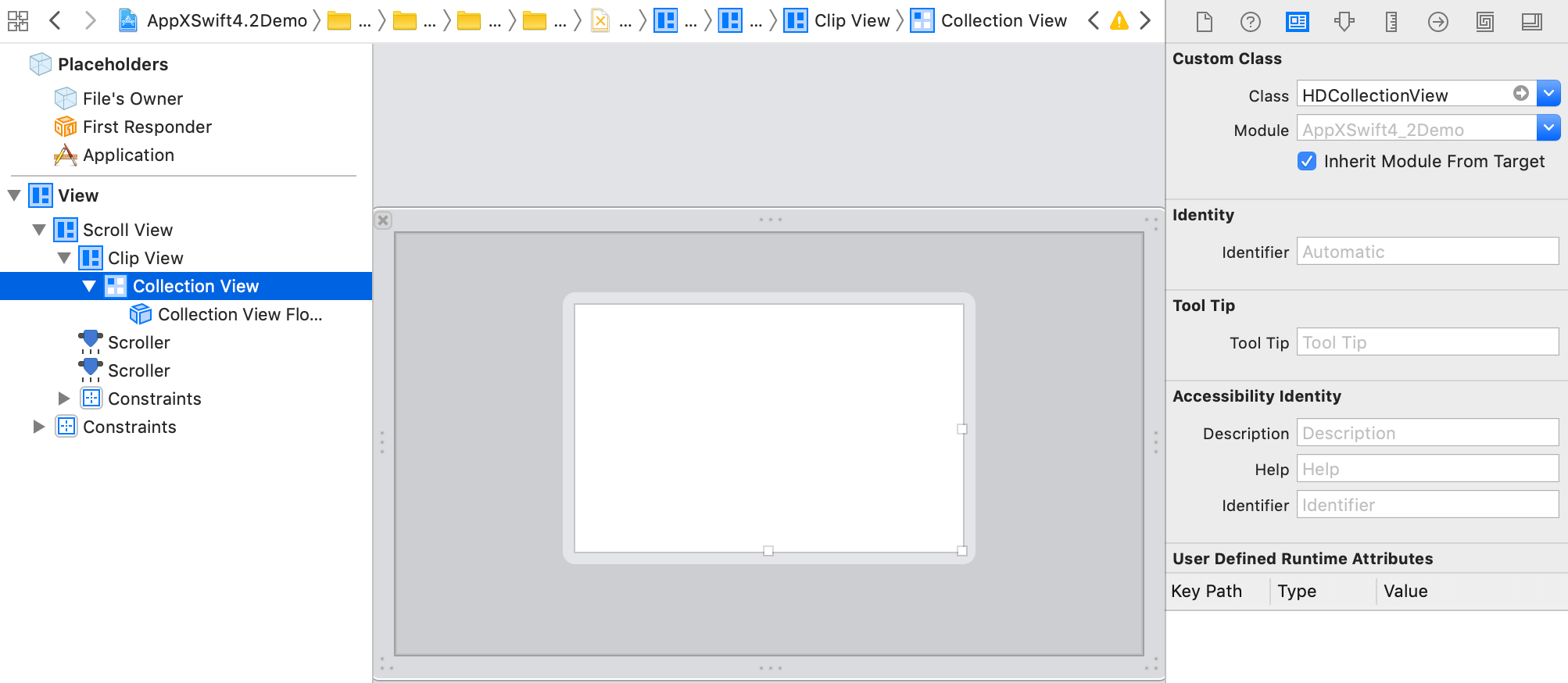

Drag NSCollectionView control to xib interface from control libraries, change control custom class to component class name of your exported.
Unlike other controls, there are several initialization and configuration methods in the controller's viewDidLoad method. The detailed code is as follows:
import Cocoa
class ViewController: NSViewController {
@IBOutlet weak var collectionView: HDCollectionView!
var scrollDirection: NSCollectionView.ScrollDirection = .vertical {
didSet {
self.flowLayout.scrollDirection = scrollDirection
}
}
var sectionInset: NSEdgeInsets = NSEdgeInsets(top: 10, left: 10, bottom: 10, right: 10)
var itemSize: NSSize = NSSize(width: 60, height: 60)
var minimumLineSpacing: CGFloat = 10.0
var minimumInteritemSpacing: CGFloat = 10.0
var headerSize: NSSize = NSSize(width: 60, height: 60)
var footerSize: NSSize = NSSize(width: 60, height: 60)
var fillColor: NSColor? {
didSet {
if let fillColor = fillColor {
collectionView.backgroundColors[0] = fillColor
}
}
}
var itemFillColor: NSColor?
var itemFillGradient: NSGradient?
var itemHighlightFillColor: NSColor?
var itemHighlightFillGradient: NSGradient?
var itemHoverColor: NSColor?
var itemHoverGradient: NSGradient?
var itemBorderColor: NSColor?
var itemBorderWidth: CGFloat?
var itemBorderRadius: CGFloat?
var itemHighlightBorderColor: NSColor?
var itemHighlightBorderWidth: CGFloat?
var items:[PageItem] = [PageItem]()
lazy var flowLayout: NSCollectionViewFlowLayout = {
let layout = NSCollectionViewFlowLayout()
layout.scrollDirection = .horizontal
layout.itemSize = self.itemSize
layout.sectionInset = self.sectionInset
layout.minimumInteritemSpacing = self.minimumInteritemSpacing
layout.minimumLineSpacing = self.minimumLineSpacing
return layout
}()
override func viewDidLoad() {
super.viewDidLoad()
//Style Config
collectionViewStyleConfig()
// Delegate
collectionViewDelegateConfig()
//Test Data Config
configViewData()
}
func collectionViewDelegateConfig() {
collectionView.delegate = self
collectionView.dataSource = self
collectionView.collectionViewLayout = self.flowLayout
collectionView.register(HDCollectionViewItem.self, forItemWithIdentifier: NSUserInterfaceItemIdentifier(rawValue: HDCollectionViewItem.reuseIdentifier))
}
func collectionViewStyleConfig() {
self.scrollDirection = .vertical
self.sectionInset = UIEdgeInsets(top: 10.0, left: 10.0, bottom: 10.0,right: 10.0)
self.itemSize = NSSize(width: 60.0, height: 60.0)
self.minimumLineSpacing = 10.0
self.minimumInteritemSpacing = 10.0
self.headerSize = NSSize(width: 60.0, height: 60.0)
self.footerSize = NSSize(width: 60.0, height: 60.0)
self.fillColor = NSColor(calibratedRed: 0.00, green: 0.22, blue: 0.28, alpha: 1.0)
self.itemHoverColor = NSColor(calibratedRed: 0.02, green: 0.25, blue: 0.76, alpha: 1.0)
self.itemBorderColor = NSColor(calibratedRed: 0.99, green: 0.02, blue: 0.51, alpha: 1.0)
self.itemBorderWidth = 2.0
self.itemBorderRadius = 2.0
self.itemHighlightBorderColor = NSColor(calibratedRed: 0.00, green: 0.64, blue: 0.83, alpha: 1.0)
}
func configViewData() {
let colorItems:[ColorItem] = [
("Default", NSColor(hex: 0x33495e)),
("Action", NSColor(hex: 0x33BFFD)),
("Cancel", NSColor(hex: 0xFF3692)),
("Primary", NSColor(hex: 0x1ABC9C)),
("Info", NSColor(hex: 0x3498DB)),
("Danger", NSColor(hex: 0xE74C3C)),
("Sucess", NSColor(hex: 0x2ECC71)),
("Warning", NSColor(hex: 0xF1C40F)),
("Inverse", NSColor(hex: 0x34495E)),
("Disabled",NSColor(hex: 0xBAC4C5)),
]
var items:[PageItem] = [PageItem]()
for item:(name: String,color: NSColor?) in colorItems {
let image = NSImage(color: item.color!, size: NSMakeSize(60, 30) , radius: 4)
items.append((item.name,image))
}
self.items = items
self.collectionView.reloadData()
}
}
extension ViewController : NSCollectionViewDataSource {
func collectionView(_ collectionView: NSCollectionView, numberOfItemsInSection section: Int) -> Int {
return items.count
}
func collectionView(_ collectionView: NSCollectionView, itemForRepresentedObjectAt indexPath: IndexPath) -> NSCollectionViewItem {
let reuseIdentifier = HDCollectionViewItem.reuseIdentifier
let item = collectionView.makeItem(withIdentifier: NSUserInterfaceItemIdentifier(rawValue: reuseIdentifier), for: indexPath)
guard let pageItem = item as? HDCollectionViewItem else { return item }
let image = items[indexPath.item].image
pageItem.image = image
pageItem.textField?.stringValue = "\(indexPath.item + 1)"
updatePageItem(item: pageItem)
var highlight = false
let selectedIndex = collectionView.selectionIndexPaths.first
if selectedIndex == indexPath { highlight = true }
pageItem.setHighlight(highlight)
return pageItem
}
func updatePageItem(item: HDCollectionViewItem) {
item.borderColor = itemBorderColor
item.borderWidth = itemBorderWidth
item.borderRadius = itemBorderRadius
item.fillColor = itemFillColor
item.fillGradient = itemFillGradient
item.hoverColor = itemHoverColor
item.hoverGradient = itemHoverGradient
item.highlightBorderColor = itemHighlightBorderColor
item.highlightBorderWidth = itemHighlightBorderWidth
item.highlightFillColor = itemHighlightFillColor
item.highlightFillGradient = itemHighlightFillGradient
}
}
extension ViewController : NSCollectionViewDelegate {
func collectionView(_ collectionView: NSCollectionView, didSelectItemsAt indexPaths: Set) {
guard let indexPath = indexPaths.first else {
return
}
guard let pageItem = collectionView.item(at: indexPath) as? HDCollectionViewItem else {
return
}
updatePageItem(item: pageItem)
pageItem.setHighlight(true)
}
func collectionView(_ collectionView: NSCollectionView, didDeselectItemsAt indexPaths: Set) {
guard let indexPath = indexPaths.first else { return }
guard let pageItem = collectionView.item(at: indexPath) as? HDCollectionViewItem else {
return
}
updatePageItem(item: pageItem)
pageItem.setHighlight(false)
}
}
code-based
Declare lazy load variable collectionView and scrollView in the controller class , add scrollView to the view. implement several initialization and configuration methods in the controller's viewDidLoad method. The detailed code is as follows:
import Cocoa
class ViewController: NSViewController {
var scrollDirection: NSCollectionView.ScrollDirection = .vertical {
didSet {
self.flowLayout.scrollDirection = scrollDirection
}
}
var sectionInset: NSEdgeInsets = NSEdgeInsets(top: 10, left: 10, bottom: 10, right: 10)
var itemSize: NSSize = NSSize(width: 60, height: 60)
var minimumLineSpacing: CGFloat = 10.0
var minimumInteritemSpacing: CGFloat = 10.0
var headerSize: NSSize = NSSize(width: 60, height: 60)
var footerSize: NSSize = NSSize(width: 60, height: 60)
var fillColor: NSColor? {
didSet {
if let fillColor = fillColor {
collectionView.backgroundColors[0] = fillColor
}
}
}
var itemFillColor: NSColor?
var itemFillGradient: NSGradient?
var itemHighlightFillColor: NSColor?
var itemHighlightFillGradient: NSGradient?
var itemHoverColor: NSColor?
var itemHoverGradient: NSGradient?
var itemBorderColor: NSColor?
var itemBorderWidth: CGFloat?
var itemBorderRadius: CGFloat?
var itemHighlightBorderColor: NSColor?
var itemHighlightBorderWidth: CGFloat?
var items:[PageItem] = [PageItem]()
lazy var collectionView: HDCollectionView = {
let view = HDCollectionView()
view.isSelectable = true
view.delegate = self
view.dataSource = self
view.collectionViewLayout = self.flowLayout
view.register(HDCollectionViewItem.self, forItemWithIdentifier: NSUserInterfaceItemIdentifier(rawValue: HDCollectionViewItem.reuseIdentifier))
view.backgroundColors[0] = NSColor.windowBackgroundColor
return view
}()
lazy var flowLayout: NSCollectionViewFlowLayout = {
let layout = NSCollectionViewFlowLayout()
layout.scrollDirection = .horizontal
layout.itemSize = self.itemSize
layout.sectionInset = self.sectionInset
layout.minimumInteritemSpacing = self.minimumInteritemSpacing
layout.minimumLineSpacing = self.minimumLineSpacing
return layout
}()
lazy var scrollView: NSScrollView = {
let scrollView = NSScrollView()
scrollView.focusRingType = .none
scrollView.autohidesScrollers = true
scrollView.borderType = .noBorder
scrollView.backgroundColor = NSColor.red
scrollView.documentView = self.collectionView
scrollView.translatesAutoresizingMaskIntoConstraints = false
return scrollView
}()
override func viewDidLoad() {
super.viewDidLoad()
//Style Config
collectionViewStyleConfig()
//Add Subview
addTabView()
//Set AutoLayout
setupAutolayout()
//Test Data Config
configViewData()
}
func addTabView() {
self.view.addSubview(scrollView)
}
func setupAutolayout() {
scrollView.left = 10
scrollView.right = -10
scrollView.top = 10
scrollView.bottom = -10
}
func collectionViewStyleConfig() {
self.scrollDirection = .horizontal
self.sectionInset = UIEdgeInsets(top: 10.0, left: 10.0, bottom: 10.0,right: 10.0)
self.itemSize = NSSize(width: 60.0, height: 60.0)
self.minimumLineSpacing = 10.0
self.minimumInteritemSpacing = 10.0
self.headerSize = NSSize(width: 60.0, height: 60.0)
self.footerSize = NSSize(width: 60.0, height: 60.0)
self.fillColor = NSColor(calibratedRed: 1.00, green: 1.00, blue: 1.00, alpha: 1.0)
self.itemHoverColor = NSColor(calibratedRed: 0.02, green: 0.26, blue: 0.76, alpha: 1.0)
}
func configViewData() {
let colorItems:[ColorItem] = [
("Default", NSColor(hex: 0x33495e)),
("Action", NSColor(hex: 0x33BFFD)),
("Cancel", NSColor(hex: 0xFF3692)),
("Primary", NSColor(hex: 0x1ABC9C)),
("Info", NSColor(hex: 0x3498DB)),
("Danger", NSColor(hex: 0xE74C3C)),
("Sucess", NSColor(hex: 0x2ECC71)),
("Warning", NSColor(hex: 0xF1C40F)),
("Inverse", NSColor(hex: 0x34495E)),
("Disabled",NSColor(hex: 0xBAC4C5)),
]
var items:[PageItem] = [PageItem]()
for item:(name: String,color: NSColor?) in colorItems {
let image = NSImage(color: item.color!, size: NSMakeSize(60, 30) , radius: 4)
items.append((item.name,image))
}
self.items = items
self.collectionView.reloadData()
}
}
extension ViewController : NSCollectionViewDataSource {
func collectionView(_ collectionView: NSCollectionView, numberOfItemsInSection section: Int) -> Int {
return items.count
}
func collectionView(_ collectionView: NSCollectionView, itemForRepresentedObjectAt indexPath: IndexPath) -> NSCollectionViewItem {
let reuseIdentifier = HDCollectionViewItem.reuseIdentifier
let item = collectionView.makeItem(withIdentifier: NSUserInterfaceItemIdentifier(rawValue: reuseIdentifier), for: indexPath)
guard let pageItem = item as? HDCollectionViewItem else { return item }
let image = items[indexPath.item].image
pageItem.image = image
pageItem.textField?.stringValue = "\(indexPath.item + 1)"
updatePageItem(item: pageItem)
var highlight = false
let selectedIndex = collectionView.selectionIndexPaths.first
if selectedIndex == indexPath { highlight = true }
pageItem.setHighlight(highlight)
return pageItem
}
func updatePageItem(item: HDCollectionViewItem) {
item.borderColor = itemBorderColor
item.borderWidth = itemBorderWidth
item.borderRadius = itemBorderRadius
item.fillColor = itemFillColor
item.fillGradient = itemFillGradient
item.hoverColor = itemHoverColor
item.hoverGradient = itemHoverGradient
item.highlightBorderColor = itemHighlightBorderColor
item.highlightBorderWidth = itemHighlightBorderWidth
item.highlightFillColor = itemHighlightFillColor
item.highlightFillGradient = itemHighlightFillGradient
}
}
extension ViewController : NSCollectionViewDelegate {
func collectionView(_ collectionView: NSCollectionView, didSelectItemsAt indexPaths: Set) {
guard let indexPath = indexPaths.first else {
return
}
guard let pageItem = collectionView.item(at: indexPath) as? HDCollectionViewItem else {
return
}
updatePageItem(item: pageItem)
pageItem.setHighlight(true)
}
func collectionView(_ collectionView: NSCollectionView, didDeselectItemsAt indexPaths: Set) {
guard let indexPath = indexPaths.first else { return }
guard let pageItem = collectionView.item(at: indexPath) as? HDCollectionViewItem else {
return
}
updatePageItem(item: pageItem)
pageItem.setHighlight(false)
}
}
